Tilting Shelf Trolleys

The Tilting Shelf Trolleys provide an all in one shelving storage for the workplace. With adjustable shelves fitted to the framework this gives the user the option to use with our plastic containers for small parts storage or hand tools.

  • 2 x 75mm Nylon swivel castors and 2 x 75mm Nylon swivel castors with brakes.
  • Made from 60 x 40 x 1.5mm ERW tube.
  • Shelves and channels made from 1.5mm mild steel.
  • Shelves are able to be tilled towards the front with the use of a quick release lever. Shelves supplied 500 x 500mm  or  750 x 500mm.
  • Holes are supplied on the outside of both vertical frames to enable the trolley to carry a 400mm service duct if required.
  • Additional shelves can be positioned at increments of 100mm.
  • Additional base tray and service ducts sold separately.
  • Designed and manufactured in the UK by QMP.

Return To Category Button

Tilting Shelf Trolleys - Colour Options
Tilting Shelf Trolley
Size H.W.D Description Code
H.1450 W.580 D.660 Tilting Shelf Trolley, Light Grey RTIL145866LX
H.1450 W.830 D.660 Tilting Shelf Trolley, Light Grey RTIL148366LX
Tilting Shelf Trolley Accessories
Size H.W.D Description Code

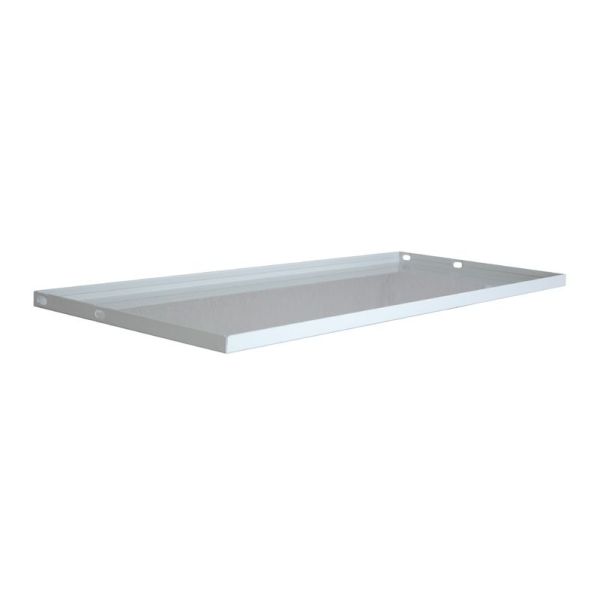

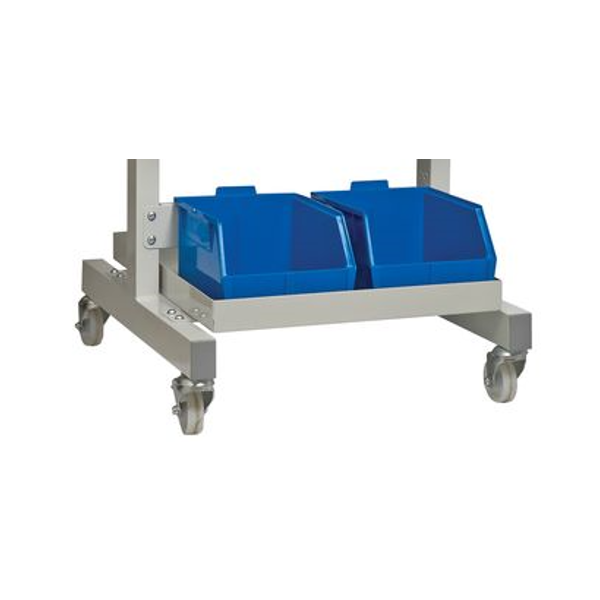

500mm Width Base Tray RTITBASE500X.

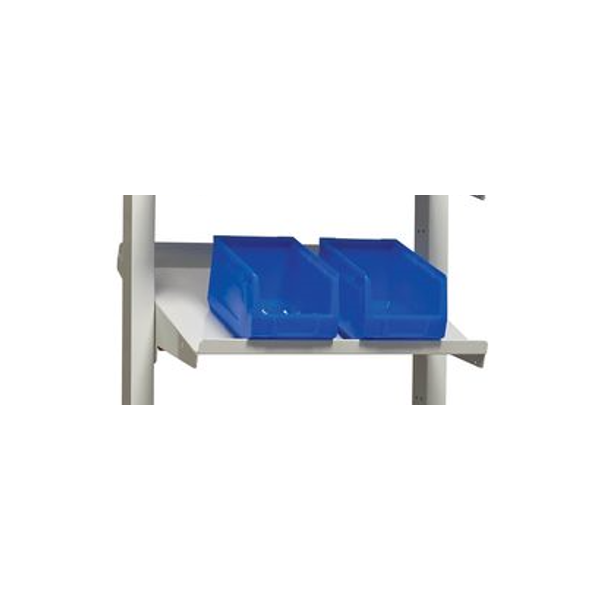

500mm Width Adjustable Shelf, Light Grey RTILADSHELF5
750mm Base Tray, Light Grey RTILBASE750X
400mm Length Service Duct RTILSERV400X
500mm Width Extra Shelf, Light Grey RTITSHELF500.
500mm Width Adjustable Shelf, Light Grey RTILADSHELF7
